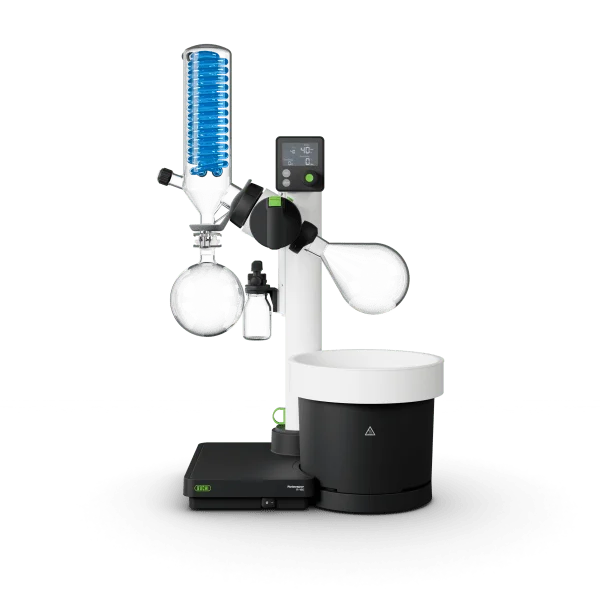

Rotavapor R-180

The BUCHI Rotavapor R-180 is an everyday rotary evaporator combining robust performance, intuitive operation and essential safety features. Positioned between the compact R-80 and the fully automated R-300, it is ideal for concentration, reflux, recrystallization and solvent recovery in routine laboratory work. Its electric lift automatically raises the evaporation flask during power outages to safeguard the sample, while the space-saving angled design and rotatable interface keep the workspace efficient and easy to monitor.

Key specifications:

• Maximum evaporation flask size: 3 L

• Maximum heating bath temperature: 95 °C

• Electric lift with automatic raise on power failure

• Available condenser configurations: V, C, A, S, CR

• IP42 protection rating

• Aluminum base construction with cordless, horizontally adjustable heating bath

• Multifunctional Combi-Clip with one-hand snap-lock flask connection

• Optional Safety Coating glassware to contain broken flask contents

Compatible system components:

• Interface I-80 / I-180 for parameter control

• Recirculating Chiller F-180 for cooling water supply

• Vacuum Pump V-80 / V-180 for controlled vacuum

Applications:

• Solvent evaporation, concentration and recovery

• Reflux and recrystallization in chemical synthesis

• Environmental sample preparation and enrichment

• Food, beverage and pharmaceutical QC and formulation

• Teaching and research applications in academia
